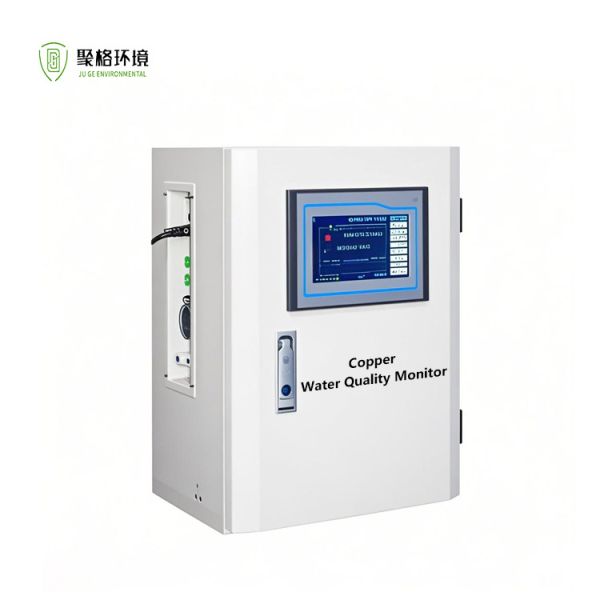

Copper Online Water Quality Analyzer

Name: Copper Online Water Quality Analyzer
Brand: JUGE
Price: 2000 USD

Brand Name : JUGE

Model Number : AG9010Cu

Certification : IOS9001, CE

Place of Origin : Nanjing, China

MOQ : 1 Unit

Price : USD2000-7000

Packaging Details : Neutral carton

Delivery Time : 5-8 working days

Payment Terms : Online order,T/T

Supply Ability : 100 Unit/Week

‌Test Method‌ : Copper Reagent Spectrophotometric Method

‌Measuring Range‌ : 0~30mg/L (segmented measurement, expandable)

‌Detection Limit‌ : ≤0.02mg/L

‌Resolution‌ : 0.001mg/L

‌Accuracy‌ : ±5%

‌Power Supply‌ : AC 220±10% V

‌Dimensions‌ : 520H × 370W × 265D (mm)

Weight‌ : 40kg

Contact Now

Copper Online Water Quality Analyzer

>>Overview

Copper, a vital metal with extensive applications, is widely used in alloys, dyes, piping, circuitry, and more. Copper salts can inhibit the growth of plankton or algae in water. In drinking water, copper ion concentrations exceeding ‌1mg/L‌ impart a bitter taste. Consequently, China has classified copper ions as a key pollutant subject to ‌total emission control‌.This monitor operates autonomously under ‌long-term unattended continuous operation‌ based on field configurations. It is widely applicable to industrial wastewater discharge, process wastewater, industrial and municipal sewage treatment plants, and similar environments. Depending on on-site complexity, optional preprocessing systems can be integrated to ensure ‌reliable testing processes‌, ‌accurate results‌, and compliance with diverse operational demands.

>>Principle

The product employs the ‌spectrophotometric method‌ for copper detection. After mixing the water sample with a buffer agent, copper is oxidized to its higher oxidation state using a strong oxidizing agent. In the presence of a buffer solution and indicator, the oxidized copper ions react with the indicator to form a colored complex. The monitor detects this color intensity change at specific wavelengths, converts it into copper concentration values, and outputs the results. The amount of colored complex formed is proportional to the total copper concentration.

>>Technical Parameter

‌Test Method‌	Copper Reagent Spectrophotometric Method
‌Measuring Range‌	0~30mg/L (segmented measurement, expandable)
Detection Limit	≤0.02mg/L
Resolution	0.001mg/L
Accuracy	±5%
‌Repeatability‌	≤±5%
‌Drift (24h)‌	Zero drift: ±5% Span drift: ±10%
‌Measurement Time‌	<30min (digestion time adjustable)
‌Measurement Modes‌	Adjustable time interval, fixed time point, or triggered measurement
‌Calibration Modes‌	Automatic calibration (1~99 days adjustable) Manual calibration based on actual water samples
‌Maintenance Cycle‌	1 month per session; ~30min per maintenance
‌Human-Machine Interface‌	Touchscreen display and command input
‌Self-Diagnosis & Protection‌	Self-diagnoses operational status; retains data during anomalies/power outages Automatically clears residual reactants and resumes operation after reset/power recovery
‌Data Storage‌	5-year data capacity
‌Input Interface‌	Digital input
‌Output Interfaces‌	1× RS232, 1× RS485 2× 4~20mA analog outputs
‌Operating Environment‌	Indoor use; recommended temperature: 5~28℃, humidity ≤90% (non-condensing)
‌Power Supply‌	Voltage: AC 220±10% V Frequency: 50±0.5 Hz Power: ≤150W (excluding sampling pump)
‌Dimensions‌	520H × 370W × 265D (mm)
